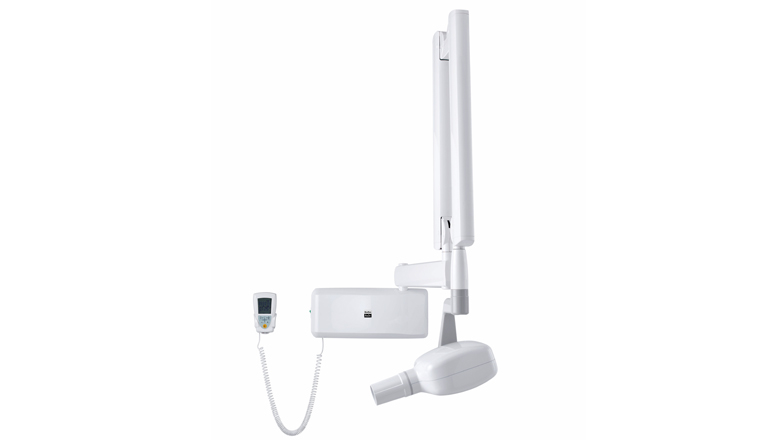

Cefla NewTom RXDC Intraoral X-ray Unit

The efficiency of NewTom RXDC from Cefla stems from a combination of advanced technology and an outstanding capacity to produce high-definition images. The RXDC X-ray unit provides top-flight performance, practicality and technology.
Request a quote
Product Details
Benefits
Specifications
Resources
Combining outstanding quality and innovation with exceptional features, the NewTom RXDC features a constant potential high-frequency (DC) generator and a very small focal spot (0.4 mm) capable of providing sharp, detailed images while ensuring working comfort and low doses for the patient.
Superior diagnostic quality
Obtained in just a few simple steps, all images are high resolution.

Advanced technology
The NewTom RXDC high-frequency X-ray unit is based on NewTom’s know-how with a 30 cm source distance and 0.4 mm focal spot.

Minimum radiation dose
Thanks to rectangular collimation and ECO Mode, the patient exposure to X-rays is minimal.

Versatile and easy to install
Easy, fast installation with multiple positioning options. NewTom RXDC is available in both wall-mounted and cart-mounted versions.
Generator: Constant potential, microprocessor-controlled
Working frequency: 145 - 230 KHz with self-adjustment (typically 175 KHz)
Focal spot: 0.4 mm (IEC 336)
Total filtration: 2 mm @ 60 kV / 2 mm @ 65 kV / 2 mm @ 70 kV (*)
Anode current: 4 / 8 mA
Voltage at X-ray tube: 60 / 65 / 70 kV (*)
Exposure times: 0.020 – 1.000 seconds, R’10 and R’20 scale
Additional collimators: 35 x 45 mm (with rectangular cone for size 2 sensors) | 31 x 41 mm and 22 x 35 mm, for size 1 and size 0 sensors
Power supply: 50/60 Hz, 115-120Vac ±10% or 230-240Vac ±10%
Arms (for Standard version only): Available in 3 lengths: 40 cm (15.7") - 60 cm (23.6") - 90 cm (35.4")
Max. arm extension: 230 cm from wall
Versions: Standard (wall mounted) or Mobile (on portable cart)

(*) Values depend on the country where the product is marketed.
