VITA 6000M Vacuum Porcelain Furnace

VITA 6000M Vacuum Porcelain Furnace

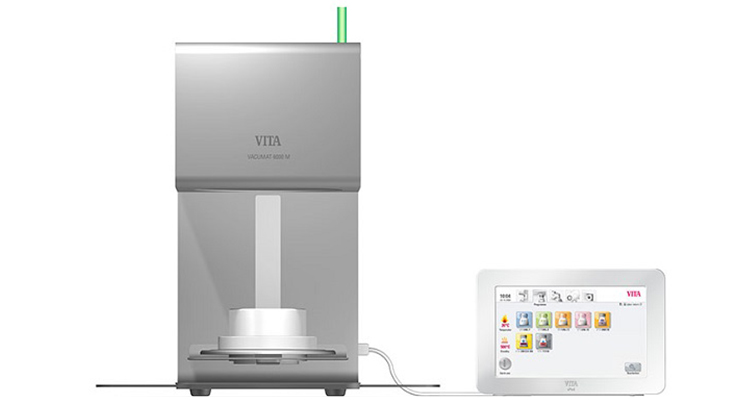

VITA has created a first-of-a-kind vacuum porcelain furnace. Thanks to the premium microprocessor, this fully automatic furnace satisfies any firing need in an efficient, economical way. The furnace provides the user with a variety of new technical features to ensure superior firing quality, user safety, comfort and reduction of working time for all ceramics, including multiple-stage crystallization firing. A maximum level of functionality is ensured by the compact design of the VITA VACUMAT 6000M. The furnace comes equipped with the firing unit, the vPad Comfort Controller and a vacuum pump.
Request a quote
Product Details
Benefits
Specifications
Resources
The furnace
  • Silica quartz muffle for even heating, temperature accuracy and consistent firing results
  • Automatic temperature adjustment before every program start
  • Automatic cleaning function
  • Operating status is indicated by a clearly visible LED stick and three selectable acoustic signals
  • Additional programs such as night mode, fast cooling and power failure protection
  • Compact, space-saving design – ideal for small areas
  • Two large, fold-away metal cooling trays

The vPad Comfort Controller
  • Intuitive “one touch” operation
  • Simple icon-driven programming and control
  • Change of program possible while program is running
  • 1 GB photo viewer with various functions
  • Controlled firing for all ceramics, including multi-stage crystallization firing (ideal for CEREC dentists)
  • Applicable for most dental ceramic materials requiring vacuum and atmospheric processing
  • Pre programmed for the two stage crystallization process
  • Automatic calibration temperature adjustment before every start of the program
  • Accuracy of temperature +/- 1°C
  • Automatic function to avoid condensed water within the insulating material
  • Automatic cleaning function (preventing longer term contamination)
  • ‘Night mode’ feature. When selected with any program allows the furnace to complete the program cycle and then ‘turn off’ keeping the oven at a moisture resilient 90 Degrees/C (until the operator opens the oven)
  • Multiple fast cooling options and power failure protection. (Programs will resume if power is reestablished within 15 seconds)
  • Current operating mode is visible at distance due to the LED light bar on furnace
  • High-quality electronics single CPU board replacement
  • Quality assurance through integrated firing data saving (can be saved to USB )
  • High quality quite VITA vacuum pump
  • Warranty 2 years on all parts and labor inclusive
  • Easily updated via USB ports
  • 110V
  • Width: 230mm
  • Depth: 325 mm
  • Height: 630 mm
  • Casing: in 2 design finishes – stainless steel and anthracite painted
  • Weight: 20.1 kg (stainless steel version), 18.7 kg (anthracite painted version)
  • Firing chamber diameter: 90mm
  • Firing chamber height: 55mm
  • Firing chamber temperature: max. 1200°C
  • Mains voltage: 230 V AC, 50 Hz or 100/110 V AC, 50/60 Hz
  • Power consumption: max. 1.5 kW
  • Classification: Protection class 1
