DCI Edge Series 5 Cabinets

Designed for optimal organization and efficiency, DCI Edge Series 5 cabinetry combines the work and storage space you need with modern aesthetic appeal. With purposeful, streamlined construction and a budget-friendly price point, Series 5 cabinets are a favorite among DCI Edge’s collection of cabinetry solutions.
Request a quote

Explore other DCI Edge cabinetry:

Product Details
Benefits
Specifications
DCI Edge Series 5 cabinetry:

  • Provides durability, stands up to repeated cleaning and keeps wood components off the floor and away from moisture with a powder-coated
  • " steel sub-base
  • Has thermal-fused edge banding that makes doors and drawers water resistant and protects edges from damage
  • Features solid surface Infinity Edge countertops for a sophisticated look
  • Includes soft-close doors and drawers
  • Offers flexible design that enables modular customization to accommodate even the most challenging spaces while optimizing operatory organization
  • Has technology friendly modules that allow for easy and efficient computer and technology integration
  • Is available in 29 standard laminate colors and 19 solid surface countertop options, with optional custom colors available
  • Comes with a five-year warranty

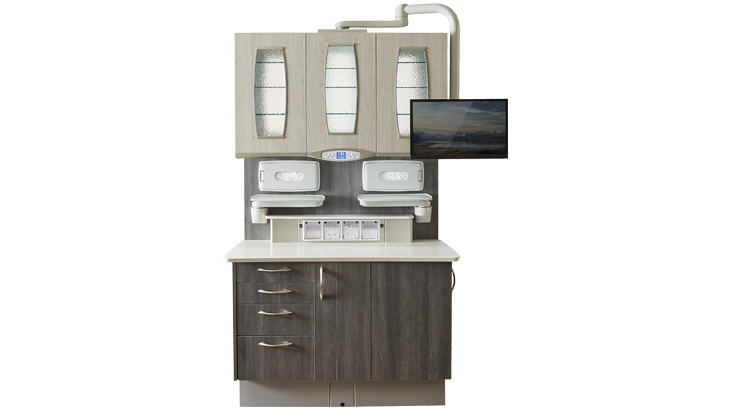

Series 5 12 O’Clock Cabinets:

  • Come in freestanding or wall-mounted options in 36" or 42" widths to match the needs of your space
  • Are available in standard 74" tall or extended 80" tall height
  • Have upper-cabinet doors that are available in your choice of solid wood or textured glass on freestanding models
  • Provide ease in restocking without interrupting procedures with pass-through upper cabinets at no additional charge
  • Feature brushed stainless steel valance with clock timer and LED task lighting
  • Easily accommodate accessories and dual electrical outlets with two USB connections
  • Are available with both front and side access storage for ergonomic access to tubs, trays, materials and instrumentation
  • Accommodate multiple 12 o’clock delivery systems
  • Have a customizable design with choice of up to three laminate colors per 12 o’clock cabinet
  • Have optional features including:
  • Swiveling steel powder-coated ergo shelves that provide an additional work surface. The sturdy die-cast arms enable each shelf to hold up to 10 pounds
  • Colored drawer organizers to optimize storage space
  • An easy-glide monitor mount that can be installed at top or bottom of upper cabinet for convenient viewing
  • Nitrous flow meter cut-outs

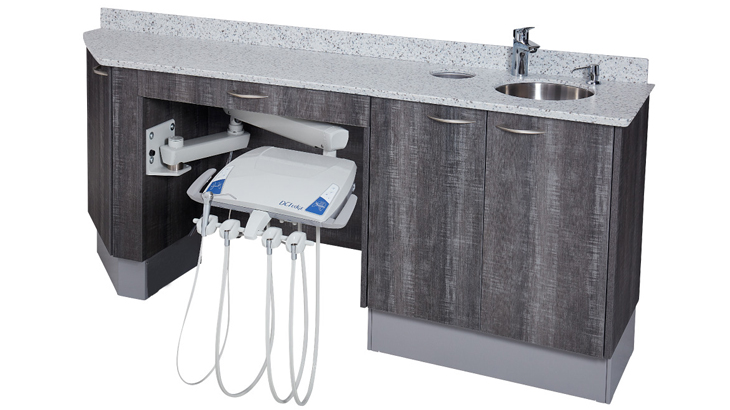

Series 5 Side Cabinets:

  • Are available in multiple lengths and styles to meet unique operatory needs
  • Have stainless steel, under-mounted sink with faucet and soap dispenser
  • Include stainless waste drop with trash bin
  • Feature Tapmaster hands-free faucet control for asepsis activation
  • Are available in 32" or 36" cabinet heights, with 17" cabinet depth

Series 5 center island cabinets feature:

  • A stainless steel backsplash for splash protection and easy cleaning
  • Glove, cup and towel dispensers
  • A stainless steel under-mounted sink with faucet and soap dispenser, and a stainless waste drop with trash bin
  • A Tapmaster hands-free faucet control for asepsis activation
  • Three duplex electrical outlets
  • Upper X-ray mounting with X-ray concealment doors enable use of X-ray in adjacent operatories
  • Customizable design with the choice of up to three laminate colors per center island cabinet
  • 88" cabinet length
  • Configurations to accommodate left- or right-handed side delivery
  • Offers customizable configurations to meet your needs for productivity, efficiency and aesthetic appeal
  • Is designed specifically for the dental practitioner, with storage and technology integration to keep you moving
  • Supports a quiet, stress-free atmosphere with soft-close doors and drawers
  • Resists scuffing and keeps moisture away from wood components with a powder-coated 6" steel sub-base
  • Has thermal-fused edge banding that makes doors and drawers water resistant and protects edges from damage
  • Features exclusive solid surface Infinity Edge countertops that provide a beautiful, sophisticated look
  • Construction: 3/4" thick 48-55 weight density particle board
  • Countertops: Wilsonart solid surface 1" thick
  • Sub-base: Powder-coated 14-gauge steel
  • Edges: 1 mm thermal bonded edge banding
  • Doors and drawers: Soft-close
